Exceptional Engineered Solutions





Challenge



Operate a butterfly 24” valve with 5 sec. open/close time.





Solution

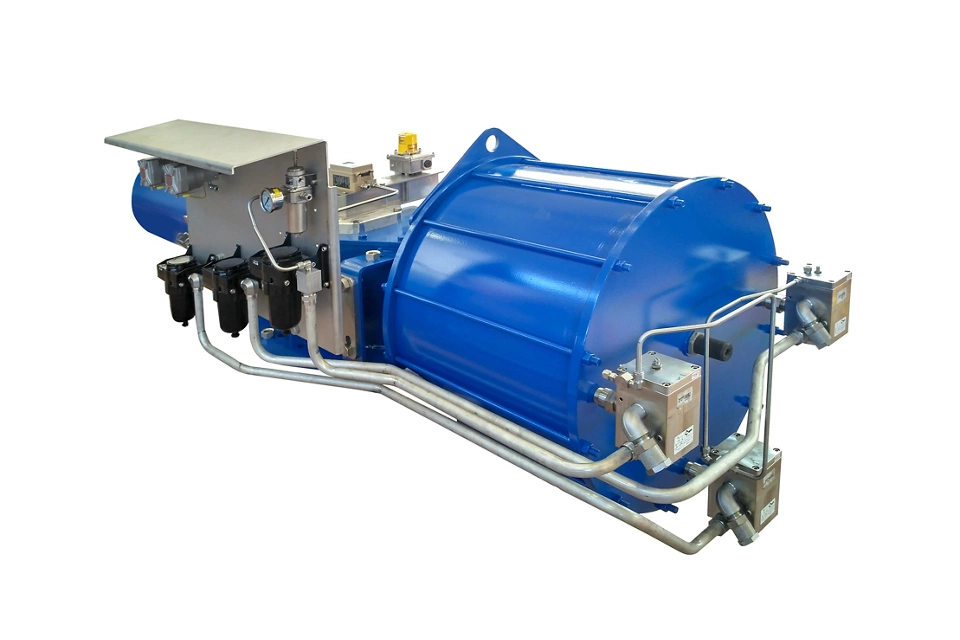

ALGAS 14C pneumatic spring return actuator with 46.000 Nm maximum operating output torque.
3 full SS AISI 316 boosters (size 1”) to guarantee the air flow rate for 5 sec open/close time.
Easy operating time setup with screws integrated on the boosters.





Industry

Petrochemical - Ethylene Glycol plant
