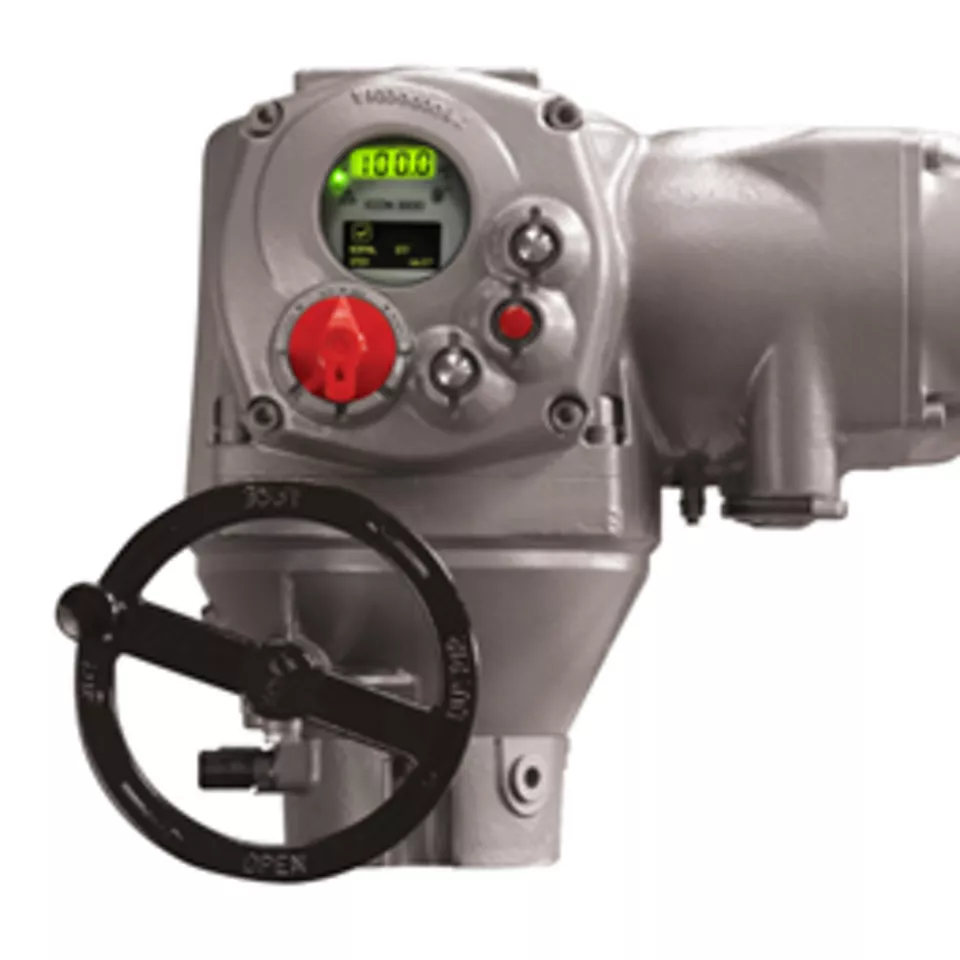

F01 3000 Electric Actuators

• Non-intrusive, user-friendly push-button panel for operation, setting, and diagnostics
• Bluetooth^® wireless connectivity
• Advanced maintenance data and alarm reports
• Valve condition monitoring
• Configurable ‘data logger’ function for maintenance and diagnostic programs
• Customized numeric and graphic displays with multiple language options
• Single enhanced terminal block
• High-definition positioner, able to read valve position even without main and backup power
• Advanced open bus communication protocols:
  • LonWorks^®
  • Profibus DPV1, redundant DPV1, redundant DPV2
  • FOUNDATION^™ Fieldbus
  • Modbus^® redundant
  • Modbus^® single channel with repeater
  • HART 7^®

• Water-tight and explosion-proof PDAs available for remote control and setup
• Light weight and compact design, mounting flange acc. ISO 5211
• Constant torque for complete operating stroke
• Double spur gear reduction and planetary gear system for a high reduction ratio with inherent self-locking characteristics. All gearing with cut teeth, metal made, running in oil for high and constant efficiency and low power consumption
• All rotating parts supported by roller bearings and a permanent oil lubrication
• Manual operation always engaged but not rotating during automatic operations
• Anodized aluminum enclosures, protection by epoxy-polyurethane painting

General application

The F013000 is available in three sizes and is designed for on/off or modulating (up to 1200 start per hours) operation of valves used in heavy industrial, chemical, and petrochemical plants.


Suitable for actuation of ball, plug, butterfly valves or dampers.


Approvals

• Water-proof: IP66
• Explosion-proof:
  • ATEX Ex-d IIB T4
  • ATEX Ex-de IIB T4
  • IECEx, CCC (China),
• Suitable for use in SIL 3 applications

Technical data
Power supply:

• 3-phase from 220 V to 690 V at 50/60 Hz
• Single-phase from 110 V to 240 V at 50/60 Hz
• DC (Direct Current) 24 V

Torque output: From 150Nm to 600Nm
Time/90° stroke : from 6 up to 60 sec.

Ambient temperature as low as -60°C (-76°F)
For other temperature ranges please contact Sales office

Bluetooth is a trademark of Bluetooth SIG, Inc., USA
