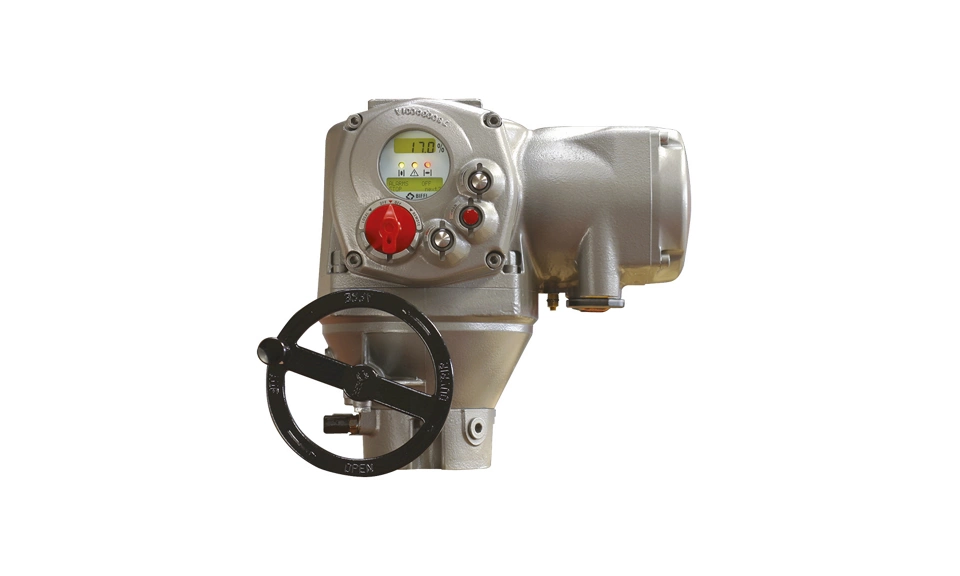

F01 Electric Actuators

• Light weight and compact design, mounting flange acc. ISO 5211
• Constant torque for complete operating stroke
• Torque control in both rotation directions
• Double spur gear reduction and planetary gear system for a high reduction ratio with inherent self-locking characteristics.
• All gearing with cut teeth, metal made, running in oil for high and constant efficiency and low power consumption
• All rotating parts supported by roller bearings and a permanent oil lubrication
• Manual operation always engaged but not rotating during automatic operations
• Mechanical adjustment of the position by mechanical stops connected directly to the actuator housing
• Anodized aluminium enclosures, protection by epoxy-polyurethane painting

• Easy set-up and commissioning
• Initial tuning without unscrewing a single bolt or nut
• Reduced set-up time
• Double displays
• Position indication in case of power failure
• Local push buttons for full actuator access
• Password protection to avoid unauthorized access
• Diagnostics are displayed in one of the available languages for both alarms and warnings
• Reduced number of parts ensures higher reliability and lower maintenance cost

Environment protection
Waterproof
IP 68 according to IEC 529 and CEI
EN60529 (15m dept/90 hours), or
alternatively NEMA 4, NEMA 4X and
NEMA 6 according to NEMA ICS6.
Standard explosion proof degree
Eex-d IIB T4 according to EN50014,
EN50018 and EN50281-1-1 Class I, div. 1
group C and D – Class II, III, div. 1 groups
E, F and G.
IP 68 according to IEC 529 and CEI
EN60529 (15m dept/90 hours), or
alternatively NEMA 4, NEMA 4X and
NEMA 6 according to NEMA ICS6

General application
Suitable for actuation of ball, plug, butterfly
valves or dampers.
Heavy duty applications such as oil and
gas, petrochemical, power and water
industries.

Technical data
Voltages : 110/220V-1Ph-50Hz
115/240V-1Ph-60Hz
230/400V-3Ph-50Hz
240/415V-3Ph-50Hz
440/480V-3Ph-60Hz
Torques : up to 600 Nm
Time/90° stroke : from 6 up to 60 sec.
Temperature : -20°C to +85°C
For other temperature
ranges please contact
Sales office
